Two-stage air end

Energy saving, nearly isothermal compression, high energy efficiency,

One-piece shell structure, reduce the pressure loss in the body,

The whole machine is easy to assemble

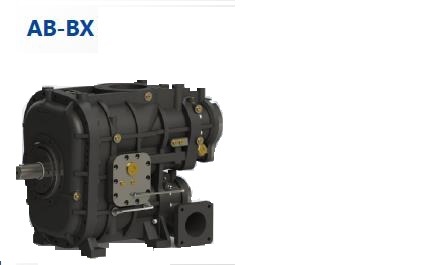

AB-BX two stage (ordinary pressure)

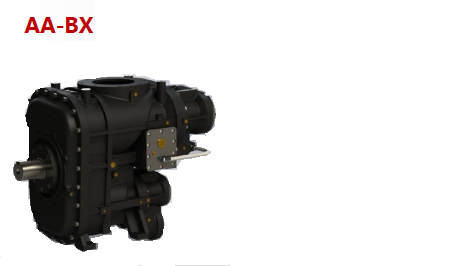

AA-BX two stage (medium pressure)

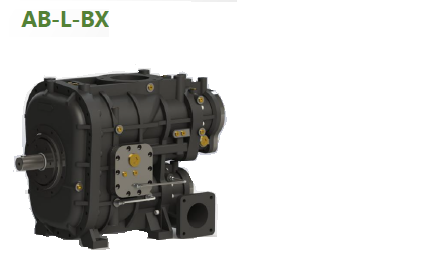

AB-L-BX two stage (low pressure)
Catalogue & Technical Manual


Technical Data

Model

Rotation speed
(rpm)

Air flow
(m3/min)

Shaft Power
(KW)

Discharge pressure
(bar.g)

AB-600BX

1490

11.4~19

39~139

17~35

AA-1560BX

1800

17~27

123~300

17~35

AA-1560AXX

1800

25~30

192~309

17~35

AA-2600BX

1800

25~45

192~448

17~35


Technical Data (5 bar.g)

Rated power

Model

Rotation speed

Air flow

Shaft Power

Power consumption

(KW)

(rpm)

(m3/min)

(KW)

(kw/m3/min)

45

AB-1030B1L

1490

11.5

49.1

4.27

55

AB-1030B2L

1490

15.9

69.7

4.38

75

AB-1030B3L

1490

18.7

83.5

4.46

90

AB-1560B2L

1490

21.6

99.1

4.59

110

AB-1560B3L

1490

24.3

114.1

4.72

110

AB-3300B1L

1490

27.9

123.4

4.42

132

AB-3300B2L

1490

32.3

142.9

4.43

150

AB-3300B3L

1490

36

160.2

4.45

160

AB-3300B4L

1490

40.7

183.2

4.5

160

AB-5600B1L

1490

41

172.6

4.21

185

AB-5600B2L

1490

45.3

196.1

4.34

200

AB-5600B3L

1490

50.1

222.6

4.44

220

AB-5600B4L

1490

54.4

243.1

4.47

250

AB-5600B5L

1490

61.8

279.1

4.52
