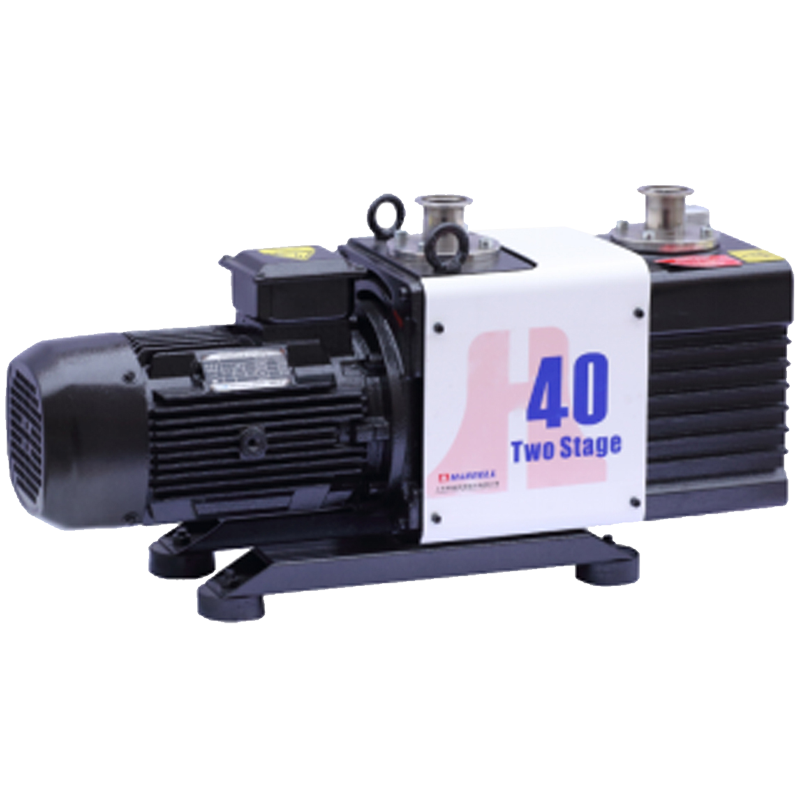

The constant pursuit of the highest technical standards has brought the quality of HANBELL PZ series vacuum pump to a new and higher level: the integral cylinder structure, innovative build-in oil pump recirculating intake system, automatic anti-return valve and the adjustable gas ballast create a comprehensive vacuum product.
Gas ballast design to meet customers' the vacuum requirements
and water treatment capacity.
Anti-return valve to protect vacuum chamber avoiding from oil pollution.
Lubrication: internal gear pump forces oil supply and improve operational stability.
Convenient maintenance.
Low noise for better working environment
Technical Data
Models | PZ4 | PZ8 | PZ12 | PZ20 | PZ30 | PZ40 | PZ60 | PZ90 | |
Pumping speed (m3/h) | 50HZ | 4 | 8 | 12 | 20 | 30 | 40 | 60 | 90 |
60HZ | 4.8 | 9.6 | 14.4 | 24 | 36 | 48 | 72 | 108 | |
Ultimate total pressure without gas ballast (Pa) | 1 | 1 | 1 | 1 | 6.7*10-1 | 6.7*10-1 | 6.7*10-1 | 6.7*10-1 | |
Ultimate total pressure with gas ballast (Pa) | 5 | 5 | 5 | 5 | 3 | 3 | 3 | 3 | |
Power supply | single/3-ph | single/3-ph | single/3-ph | single/3-ph | 3-ph | 3-ph | 3-ph | 3-ph | |
Motor power (kw) | 0.25 | 0.37 | 0.55 | 0.75 | 1 | 1.5 | 2.2 | 4 | |
Inlet port DN (mm) | KF25 | KF25 | KF25 | KF25 | KF40 | KF40 | KF55 | KF55 | |
Oil capacity (L) | 0.6~1 | 0.6~1 | 0.9~1.5 | 0.9~1.5 | 1.5~2.0 | 1.5~2.0 | 3.0~4.0 | 3.0~4.0 | |
Motor speed (rpm) | 50HZ | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
60HZ | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 | |
Operating ambient temperature | 5-40 | 5-40 | 5-40 | 5-40 | 5-40 | 5-40 | 5-40 | 5-40 | |
Noise (dB) | ≦56 | ≦56 | ≦58 | ≦58 | ≦60 | ≦62 | ≦63 | ≦65 | |
Weight (Kg) | 19 | 21 | 30 | 35 | 59 | 61 | 90 | 105 | |
Medical industry
Plasma sterilizer, vacuum freeze drying, vacuum mixing, etc.. In view of the large amount of H2O2 in the reaction environment of the plasma sterilizer, a special vacuum pump for resisting weak corrosive gas has been developed.
Analytical instrument
Spectrometer, chromatograph, physical and chemical analysis instrument, electron microscope, leak detector and so on (if necessary clean environment, it is recommended to configure oil mist filter).
Power industry
SF6 recovery, testing instruments, oil purifier and so on.
Electronics, semiconductor industry
Vacuum oven, glove box, industrial furnace(Sapphire furnace, single crystal furnace, melt spinning furnace), coating equipment (ion plating, sputtering equipment, etc.), as molecular pump or roots pump front auxiliary pump.
Refrigeration industry
Air conditioner, refrigerator(a full set of accessories for purchase), refrigerant injection machine, helium leak detection system, helium recovery system etc.
